Product Summary
The SS24-E3/52T is a Surface Mount Schottky Barrier Rectifier. It is suitable for For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications.
Parametrics
SS24-E3/52T absolute maximum ratings: (1)Maximum repetitive peak reverse voltage, VRRM: 40V; (2)Maximum RMS voltage, VRMS: 28V; (3)Maximum DC blocking voltage, VDC: 40V; (4)Max. average forward rectified current at TL, IF(AV): 2.0 A; (5)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load, IFSM: 75 A; (6)Non-repetitive avalanche energy at TA = 25℃, IAS = 2.0 A, L = 10 mH, EAS: 20 mJ; (7)Electrostatic discharge capacitor voltage, Human body model: C = 100 pF, R = 1.5 kΩ, VC: 8.0 KV; (8)Voltage rate of change (rated VR), dV/dt: 10 000 V/μs ; (9)Operating junction temperature range, TJ: - 65 to + 125℃; (10)Storage temperature range, TSTG: - 65 to + 150℃.
Features
SS24-E3/52T features: (1)Low profile package; (2)Ideal for automated placement; (3)Guardring for overvoltage protection; (4)Low power losses, high efficiency; (5)Low forward voltage drop; (6)High surge capability; (7)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (8)Solder dip 260℃, 40 s; (9)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

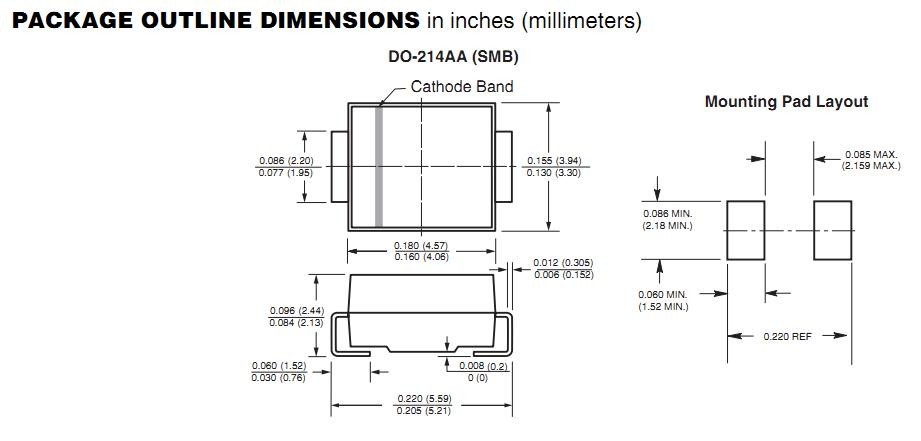

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SS24-E3/52T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 2.0 Amp 40 Volt |
Data Sheet |
|
|
|||||||||||||
