Product Summary

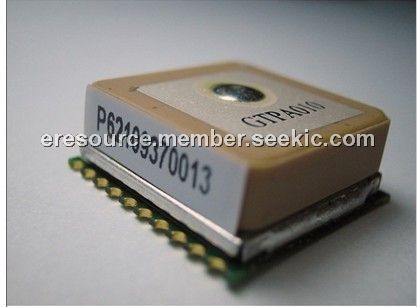

The FGPMMOPA6B is an ultra-compact POT (Patch On Top) GPS Module. The FGPMMOPA6B provides a solution that is high in position and speed accuracy performances, with high sensitivity and tracking capabilities in urban conditions. The GPS chipset inside the module is powered by MediaTek Inc., the world leading digital media solution provider and the largest fab less IC company in Taiwan. The FGPMMOPA6B can support up to 66 channels, and is designed for small-formfactor device.
Parametrics
FGPMMOPA6B absolute maximum ratings: (1) Operation supply Voltage: 3.2, 3.3, 5.0 V; (2) Operation supply Ripple Voltage: 50 mVpp; (3) Backup Battery Voltage: 2.0, 3.0, 4.3 V; (4) RX TTL H Level VCC=3.2 ~5.0V: 2.1, 2.8 V; (5) Power Consumption ＠ 3.3V, 1Hz Update Rate Acquisition: 43, 48, 53 mA, Tracking 32 37 42 mA; (6) Backup Power Consumption@ 3.0V 25℃: 10uA.
Features
FGPMMOPA6B features: (1) MediaTek MT3329 Single Chip; (2) L1 Frequency, C/A code, 66 channels; (3) Support up 210 PRN channels; (4) Jammer detection and reduction; (5) Multi path detection and compensation; (6) Dimension: 16mm x 16mm x 6mm; (7) Patch Antenna Size: 15mm x 15mm x 4mm; (8) High Sensitivity: Up to －165 dBm tracking, superior urban performances1.

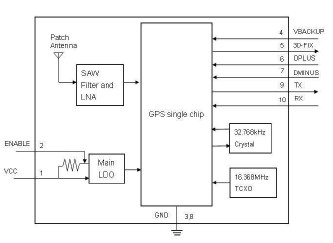

Diagrams
