HEDS-9140#A00

DIP, optical incremental encoder module, 5V, -1.0 mA to 5 mA, HEDS-9140

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.02

PartNumber:: HEDS-9140#A00

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: ZIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Candy Wang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-30

From Other Seller

Part Number:HEDS-9140#A00
US $0.01 - 0.02
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

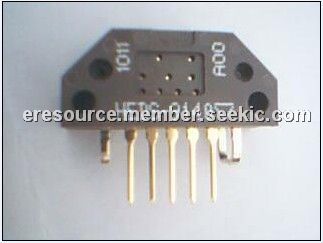

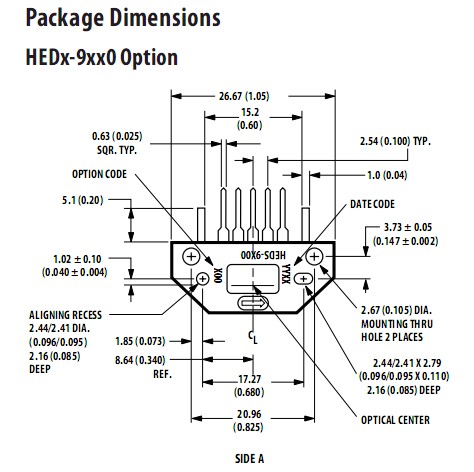

The HEDS-9140#A00 is a three channel optical incremental encoder module. When used with a codewheel, the low cost module detects rotary position. Each module consists of a lensed LED source and a detector IC enclosed in a small plastic package. Due to a highly collimated light source and a unique photodetector array, the HEDS-9140#A00 provides the same high performance found in the HEDS-9000/9100 two channel encoder family.

Parametrics

HEDS-9140#A00 absolute maximum ratings: (1)Storage Temperature: -40 to +100℃; (2)Operating Temperature: -40 to +100℃; (3)Supply Voltage,VCC: -0.5V to 7V; (4)Output Voltage,VO: -0.5V to VCC; (5)Output Current per Channel: -1.0 mA to 5 mA; (6)Shaft Axial Play: ±0.25 mm(±0.010 in.); (7)Shaft Eccentricity Plus Radial Play: 0.1mm(0.004 in.); (8)TIR Velocity: 30,000 RPM[1]; (9)Acceleration: 250,000 rad/sec2[1].
