Product Summary

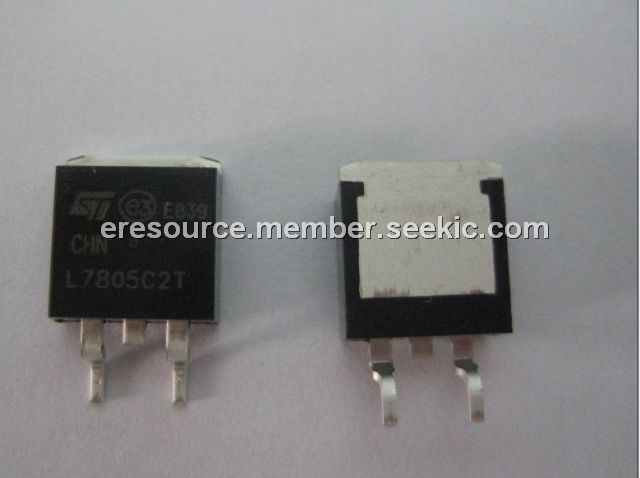

The L7805C2T is a three-terminal positive regulator. It is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7805C2T can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. The L7805C2T employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, the L7805C2T can deliver over 1A output current. Although designed primarily as fixed voltage regulators, the L7805C2T can be used with external components to obtain adjustable voltage and currents.

Parametrics

L7805C2T absolute maximum ratings: (1)VI, DC Input Voltage for VO= 5 to 18V: 35V; for VO= 20, 24V: 40V; (2)IO, Output Current: Internally Limited; (3)Ptot,Power Dissipation: Internally Limited; (4)Tstg, Storage Temperature Range: -65 to 150℃; (5)Top, Operating Junction Temperature Range: -55 to 150℃.

Features

L7805C2T features: (1)output current to 1.5A; (2)output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition SOA protection.

Diagrams

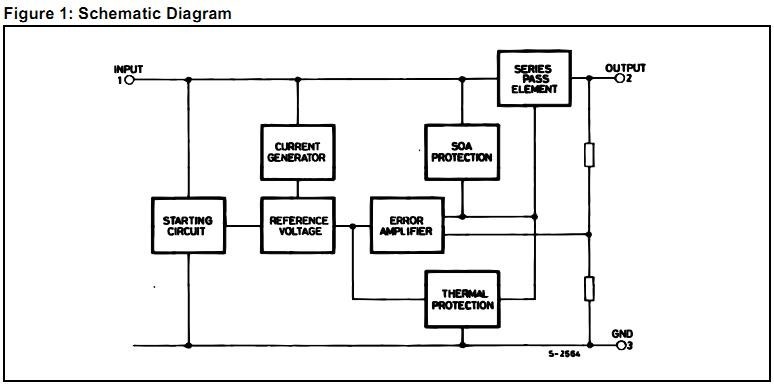

L7805C2T circuit diagram
