Product Summary
The GP2Y0A710K0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit. The applications of the GP2Y0A710K0F are Projector (for auto focus) Robot cleaner, Auto-switch for illumination, etc., Human body detector, Amusement equipment.
Parametrics
GP2Y0A710K0F absolute maximum ratings: (1)Supply voltage VCC: -0.3 to +7 V; (2)Output terminal voltage VO: -0.3 to VCC+0.3 V; (3)Operating temperature Topr: -10 to +60 ℃; (4)Storage temperature Tstg: -40 to +70 ℃.
Features
GP2Y0A710K0F features: (1)Long distance type Distance measuring range : 100 to 550 cm; (2)Analog output type; (3)Package size : 58×17.6×22.5 mm; (4)Consumption current : Typ. 30 mA; (5)Supply voltage : 4.5 to 5.5 V.

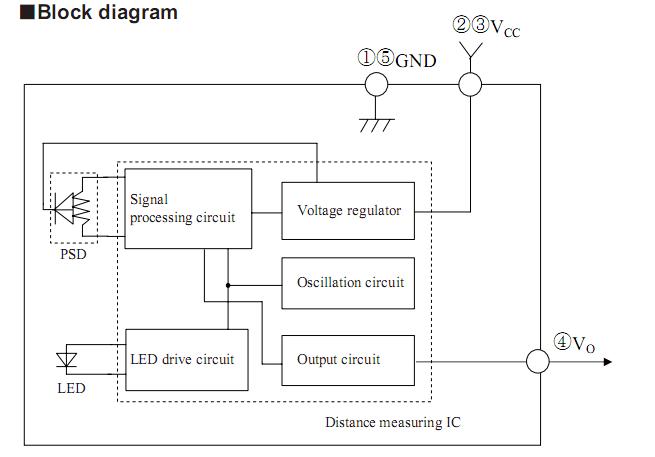

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 GP2Y0A710K0F |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
GP2Y0A02YK |
|
SENSOR DIST MEASUR 150CM ANLG |
Data Sheet |
Negotiable |
|
||||
 |
GP2Y0A02YK0F |
Sharp Microelectronics |
Proximity Sensors Distance Measuring Sensor 20-150cm |
Data Sheet |
Negotiable |
|
||||
|
GP2Y0A21YK |
|
SENSOR DIST MEASUR 80CM ANLG |
Data Sheet |
Negotiable |
|
||||
 |
GP2Y0A21YK0F |
Sharp Microelectronics |
Proximity Sensors Distnc Measurng Snsr Wde Beam 10-80cm |
Data Sheet |
Negotiable |
|
||||
|
GP2Y0A700K0F |
Sharp Microelectronics |
Proximity Sensors DISTANCE MEASURING |
Data Sheet |
Negotiable |
|
||||
|
GP2Y0A710K0F |
Other |
|
Data Sheet |
Negotiable |
|
||||
