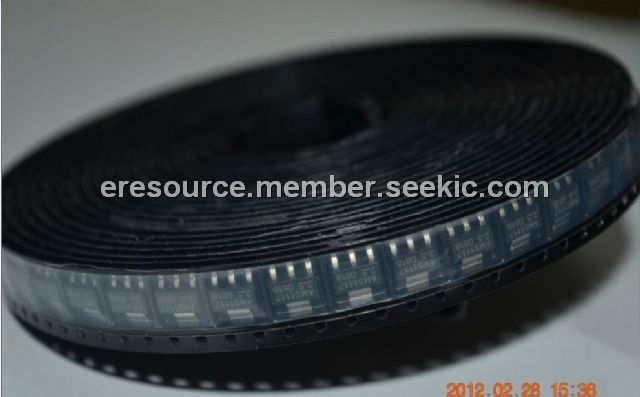

AMS1117-2.5

1A, low dropout voltage regulator, SOT-223, 15V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.02

PartNumber:: AMS1117-2.5

Brand:: Advanced Monolithic Systems - AMS | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Candy Wang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-29

From Other Seller

Part Number:AMS1117-2.5
US $0.01 - 0.02
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AMS1117-2.5V is a 1A low dropout voltage regulator. It is designed to provide 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the AMS1117-2.5V is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents. The applications of the AMS1117-2.5V include High Efficiency Linear Regulators, Post Regulators for Switching Supplies, 5V to 3.3V Linear Regulator, Battery Chargers, Active SCSI Terminators, Power Management for Notebook, Battery Powered Instrumentation.

Parametrics

AMS1117-2.5V absolute maximum ratings: (1)Power Dissipation:Internally limited; (2)Soldering information: Lead Temperature (25 sec):265℃; (3)Input Voltage:15V; (4)Operating Junction Temperature:Control Section:0℃ to 125℃, Power Transistor:0℃ to 150℃; (5)Storage temperature:- 65℃ to +150℃; (6)Thermal Resistance:SO-8 package:160℃/W,TO-252 package:80℃/W, SOT-223 package:90℃/W.

Features

AMS1117-2.5V features: (1)Three Terminal Adjustable or Fixed Voltages:1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V ; (2)Output Current of 1A ; (3)Operates Down to 1V Dropout ; (4)Line Regulation: 0.2% Max. ; (5)Load Regulation: 0.4% Max. ; (6)SOT-223, TO-252 and SO-8 package available.
