Product Summary

The SN75LV4737ADBR is a 3.3-V/5-V multichannel RS-232 line driver/receiver. It consists of three line drivers, five line receivers, and a charge-pump circuit. The SN75LV4737ADBR provides the electrical interface between an asynchronous communication controller and the serial-port connector, and meets the requirements of TIA/EIA-232-F.

Parametrics

SN75LV4737ADBR absolute maximum ratings: (1)Supply voltage, VCC:7 V; (2)Positive output supply voltage, VDD:15 V; (3)Negative output supply voltage, VSS:–15 V; (4)Input voltage range, VI: Driver:–3 V to 7 V, Receiver:–30 V to 30 V ; (5)Output voltage range, VO: Driver:VSS – 03 V to VDD + 03 V, Receiver:–03 V to 7 V ; (6)Package thermal impedance, θJA:62℃/W; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃; (8)Storage temperature range, Tstg:–65℃ to 150℃.

Features

SN75LV4737ADBR features: (1)Single-Chip and Single-Supply Interface for IBM PC/AT Serial Port; (2)Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.11 Standards; (3)Operates With 3.3-V or 5-V Supplies; (4)One Receiver Remains Active During Standby (Wake-up Mode); (5)Designed to Operate at 128 kbit/s Over a 3-m Cable; (6)Low Standby Current:5 uA Max.

Diagrams

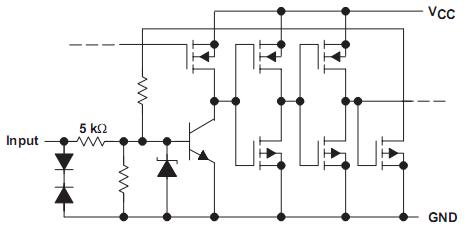

SN75LV4737ADBR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

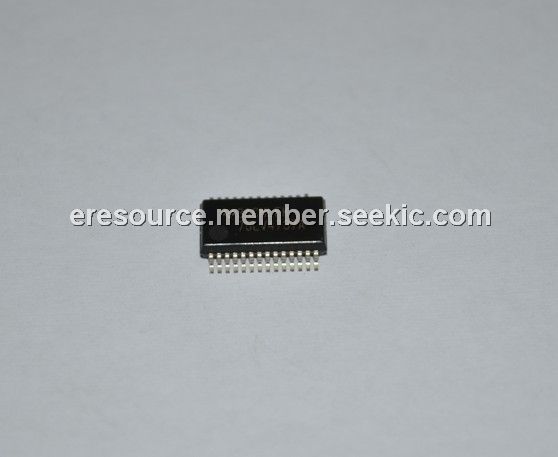

SN75LV4737ADBR
SN75LV4737ADBR

Texas Instruments

Buffers & Line Drivers Multichannel RS-232

Data Sheet

0-1: $2.38
1-25: $1.94
25-100: $1.75
100-250: $1.58
SN75LV4737ADBRE4
SN75LV4737ADBRE4

Texas Instruments

Buffers & Line Drivers 3.3-V/5-V MultiCh Line Driver/Receiver

Data Sheet

0-1485: $1.46
1485-2000: $1.40
2000-5000: $1.35
SN75LV4737ADBRG4
SN75LV4737ADBRG4

Texas Instruments

Buffers & Line Drivers 3.3-V/5-V MultiCh Line Driver/Receiver

Data Sheet

0-1485: $1.46
1485-2000: $1.40
2000-5000: $1.35
