Product Summary

The b0505t-1w is a 1W, isolated & unregulated single output, SMD DC-DC converter. It is specially designed for applications where a group of polar power supplies are isolated from the input power supply in a distributed power supply system on a circuit board.

Parametrics

b0505t-1w absolute maximum ratings: (1)Storage humidity:95%; (2)Operating temperature:-40 to 85℃; (3)Storage temperature:-55 to 125℃; (4)Temp. rise at full load:15 to 25℃; (5)Lead temperature 1.5mm from case for 10 seconds:260℃.

Features

b0505t-1w features: (1)Single Voltage Output ; (2)SMD Package Style ; (3)Industry Standard Pinout ; (4)No Heatsink Required ; (5)1KVDC Isolation ; (6)High Power Density ; (7)Temperature Range: -40°C~+85°C ; (8)No External Component Required ; (9)RoHS Compliance.

Diagrams

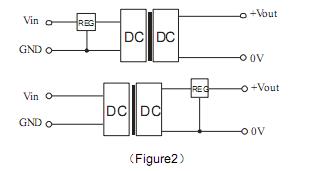

b0505t-1w block diagram
