Product Summary

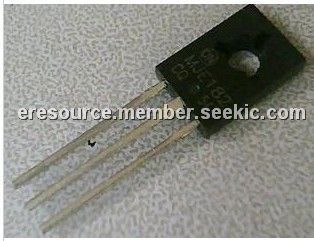

The MJE182G is a complementary plastic silicon power transistor.

Parametrics

MJE182G absolute maximum ratings: (1) Operating and Storage Junction Temperature Range TJ, Tstg: －65 to +150; (2) Base CurrentIB: 1.0Adc; (3) Emitter Base VoltageVEB: 7.0Vdc; (4) Total Power Dissipation @ TC = 25℃Derate above 25℃ PD: 1.5W, 0.012W/℃.

Features

MJE182G features: (1) Collector Emitter Sustaining Voltage VCEO(sus) = 40 Vdc MJE170, MJE180= 60 Vdc MJE171, MJE181= 80 Vdc MJE172, MJE182 DC Current Gain hFE = 30 (Min) @ IC = 0.5 Adc= 12 (Min) @ IC = 1.5 Adc ; (2) Current Gain Bandwidth Product fT = 50 MHz (Min) @ IC = 100 mAdc ; (3) Annular Construction for Low Leakages ICBO = 100 nA (Max) @ Rated VCB ; (4) Epoxy Meets UL 94 V 0 @ 0.125 in ; (5) ESD Ratings: Machine Model, CHuman Body Model, 3B ; (6) Pb Free Packages are Available*.

Diagrams

MJE182G pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MJE182G
MJE182G
ON Semiconductor
Transistors Bipolar (BJT) 3A 80V 12.5W NPN
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.21
100-500: $0.18
