Product Summary

The K7805-500 is a high efficiency switching regulator. It is ideally suited to replace 78xx linear regulators and is pin compatible.

Parametrics

K7805-500 absolute maximum ratings: (1)Storage humidity range:95%; (2)Operating temp. range:-40 to 85°C; (3)Storage temp. range: -55 to 125°C; (4)Operating case temp.:100°C; (5)Lead temperature 1.5mm from case for 10 seconds: 300°C.

Features

K7805-500 features: (1)Efficiency up to 96%; (2)Temperature range: -40°C ~ +85°C; (3)No heat sink required; (4)Pin-out compatible with LM78XX linears; (5)Short circuit protection, Thermal shutdown; (6)Low ripple and noise; (7)SIP package; (8)Industry standard pinout; (9)MTBF>2,000,000 hours.

Diagrams

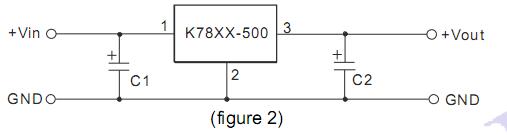

K7805-500 circuit diagram
