Product Summary

The MPU6050 is a Triple Axis Accelerometer. In smartphones, it finds use in applications such as gesture commands for applications and phone control, enhanced gaming, augmented reality, panoramic photo capture and viewing, and pedestrian and vehicle navigation. With the MPU6050 is ability to precisely and accurately track user motions, MotionTracking technology can convert handsets and tablets into powerful 3D intelligent devices that can be used in applications ranging from health and fitness monitoring to location based services. Key requirements for MotionInterface enabled the MPU6050 is small package size, low power consumption, high accuracy and repeatability, high shock tolerance, and application specific performance programmability all at a low consumer price point.

Parametrics

MPU6050 absolute maximum ratings: (1) Supply Voltage, VDD: －0.5V to +6V; (2) VLOGIC Input Voltage Level (MPU－6050): －0.5V to VDD + 0.5V; (3) REGOUT: －0.5V to 2V; (4) Input Voltage Level (CLKIN, AUX_DA, AD0, FSYNC, INT, SCL, SDA):; (5)－0.5V to VDD + 0.5V; (6) CPOUT (2.5V ≤ VDD ≤ 3.6V ): －0.5V to 30V; (7) Acceleration (Any Axis, unpowered): 10,000g for 0.2ms; (8) Operating Temperature Range: －40℃ to +105℃; (9) Storage Temperature Range: －40℃ to +125℃.

Features

MPU6050 features: (1) External sync signal connected to the FSYNC pin supports image, video and GPS synchronization; (2) Integrated 16 bit ADCs enable simultaneous sampling of gyros; (3) Enhanced bias and sensitivity temperature stability reduces the need for user calibration; (4) Improved low frequency noise performance; (5) Digitally programmable low pass filter; (6) Gyroscope operating current: 3.6mA; (7) Standby current: 5uA; (8) Factory calibrated sensitivity scale factor; (9) User self test.

Diagrams

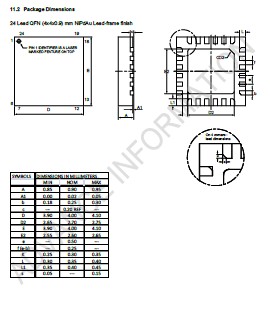

MPU6050 dimension
