Product Summary

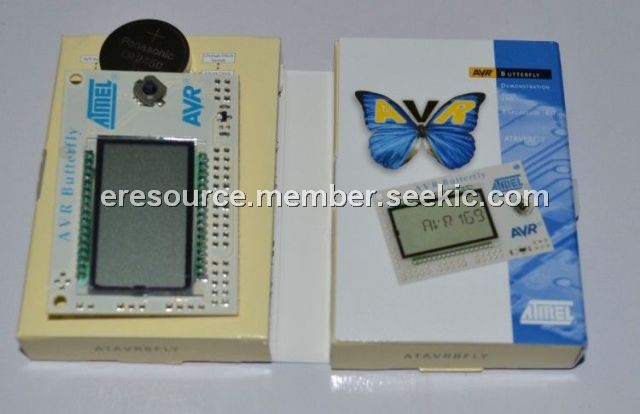

The ATAVRBFLY is a butterfly. It uses the ATmega169 which combines Atmel’s state of the art Flash Technology with the most advanced and versatile 8-bit microcontroller available. Together with a comprehensive feature set and low power consumption, the ATmega169 takes on many of a butterfly’s qualities, such as Beauty and High Efficiency at a very low energy consumption. The ATAVRBFLY flies on a light draught.

Parametrics

ATAVRBFLY general specifications: (1)Core: AVR8; (2)Interface Type: Serial, USB; (3)Operating Supply Voltage: 3.1 V to 4.5 V; (4)Data Bus Width: 8 bit; (5)Dimensions: 67 mm x 45 mm x 14 mm.

Features

ATAVRBFLY features: (1)ATmega169 AVR microcontroller; (2)100 segment LCD Display; (3)4Mbit Dataflash; (4)32kHz oscillator for RTC; (5)4-way directional button; (6)Light sensor (LDR); (7)Temperature Sensor (NTC); (8)Speaker for Sound Generation; (9)Access to pheripherals through header connectors; (10)RS-232 Level Converter.

Diagrams

ATAVRBFLY block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATAVRBFLY
ATAVRBFLY

Atmel

Development Boards & Kits - AVR Evaluation tool w/preloaded firmware

Data Sheet

0-1: $11.99
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATAVR128RFA1-EK1
ATAVR128RFA1-EK1

Atmel

Zigbee / 802.15.4 Development Tools ATmega128RFA1 Wireless Eval kit

Data Sheet

0-1: $59.25

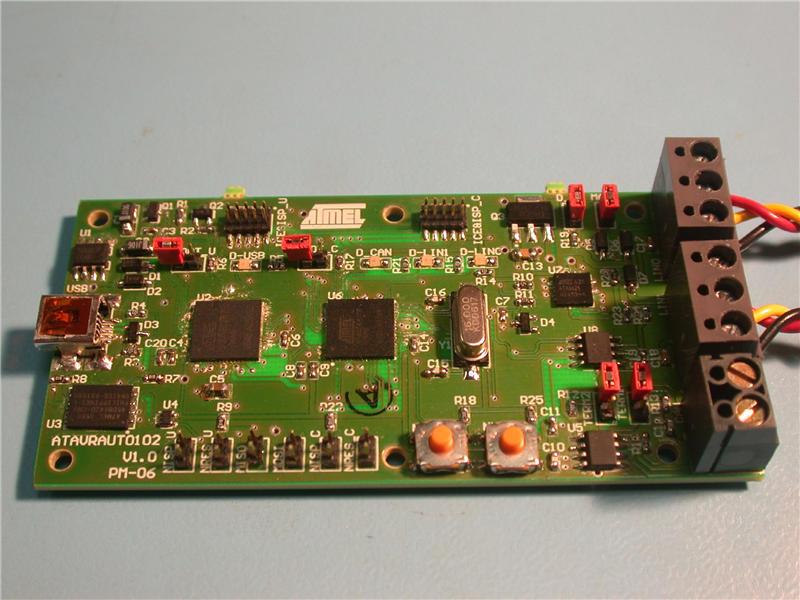

ATAVRAUTO102
ATAVRAUTO102

Atmel

Development Boards & Kits - AVR AVR Automotive Debugger Kit

Data Sheet

Negotiable
ATAVRAUTOEK2
ATAVRAUTOEK2

Atmel

Power Management IC Development Tools AUTOMOTIVE LIN MOTOR CONTROL

Data Sheet

0-1: $155.38
ATAVRBC100
ATAVRBC100

Atmel

Development Boards & Kits - AVR Battery Charging Reference Design

Data Sheet

0-1: $119.25
ATAVRBFLY
ATAVRBFLY

Atmel

Development Boards & Kits - AVR Evaluation tool w/preloaded firmware

Data Sheet

0-1: $11.99
ATAVRCABLEKIT
ATAVRCABLEKIT

Atmel

Development Boards & Kits - AVR AVR tools cable kit (USB+ribbon cables)

Data Sheet

0-1: $10.61
