Product Summary

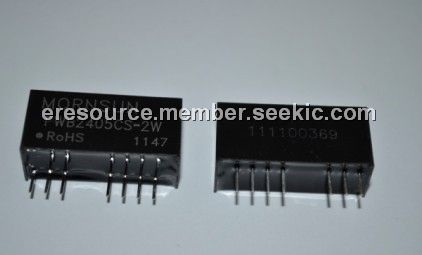

The PWB2405CS-2W is a 1.5W, wide input, isolated & regulated dual/single output DC-DC converter. The PWB2405CS-2W is specially designed for applications where a wide range input voltage power supplies are isolated from the input power supply in a distributed power supply system on a circuit board.
Parametrics
PWB2405CS-2W general specifications: (1)Storage humidity:95%; (2)Operating temperature:-40 to 85℃; (3)Storage Temperature:-55 to 125℃; (4)Temp. rise at full load:15℃; (5)Lead temperature 1.5mm from case for 10 seconds:300℃.
Features
PWB2405CS-2W features: (1)DIP package; (2)Wide input voltage range(4:1); (3)Operating temperature: -40 ~ +85℃; (4)1500VDC Input/Output isolation; (5)Short circuit protection (automatic recovery); (6)Internal SMD construction; (7)No external component required; (8)No heat sink required; (9)Industry standard pinout; (10)Five-sided shielding package(PWA/B_MD); (11)MTBF>1,000,000 hours; (12)RoHS Compliance.

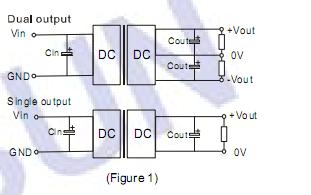

Diagrams
 |
