Product Summary

The AD9230BCPZ-250 is a 1.8 V A/D Converter. The AD9230BCPZ-250 is a 12-bit monolithic sampling analog-to-digital converter optimized for high performance, low power, and ease of use. The AD9230BCPZ-250 operates up to a 250 MSPS conversion rate and is optimized for outstanding dynamic performance in wideband carrier and broadband systems. All necessary functions, including a track-and-hold (T/H) and voltage reference, are included on the chip to provide a complete signal conversion solution. The AD9230BCPZ-250 requires a 1.8 V analog voltage supply and a differential clock for full performance operation. The digital outputs are LVDS (ANSI-644) compatible and support either twos complement, offset binary format or gray code. A data clock output is available for proper output data timing.

Parametrics

AD9230BCPZ-250 absolute maximum ratings: (1) AVDD : 2.0V; (2) DRVDD : 2.0V; (3) Analog Inputs : –0.5 V to AVDD + 0.5 V; (4) Digital Inputs : –0.5 V to DRVDD + 0.5 V; (5) REFIN Inputs : –0.5 V to AVDD + 0.5 V; (6) Digital Output Current : 20mA; (7) Operating Temperature : –40 to +125℃; (8) Storage Temperature : –65 to +150℃; (9) Maximum Junction Temperature : 150℃; (10) Maximum Case Temperature : 150℃.

Features

AD9230BCPZ-250 features: (1)SNR = 65.5 dBFs @ fIN up to 70 MHz @ 250 MSPS; (2)ENOB of 10.6 @ fIN up to 70 MHz @ 250 MSPS (–0.5 dBFS); (3)SFDR = 82 dBc@ fIN up to 70 MHz @ 250 MSPS (–0.5 dBFS); (4)Excellent Linearity; (5)DNL = ±0.3 LSB (Typical); (6)INL = ±0.5 LSB (Typical); (7)LVDS at 250 MSPS (ANSI-644 levels); (8)900 MHz Full Power Analog Bandwidth; (9)On-Chip Reference and Track-and-Hold; (10)Power Dissipation = 425 mW Typical @ 250 MSPS; (11)1.25 V Input Voltage Range; (12)1.8 V Analog Supply Operation; (13)Output Data Format Option; (14)Data Clock Output Provided; (15)Clock Duty Cycle Stabilizer.

Diagrams

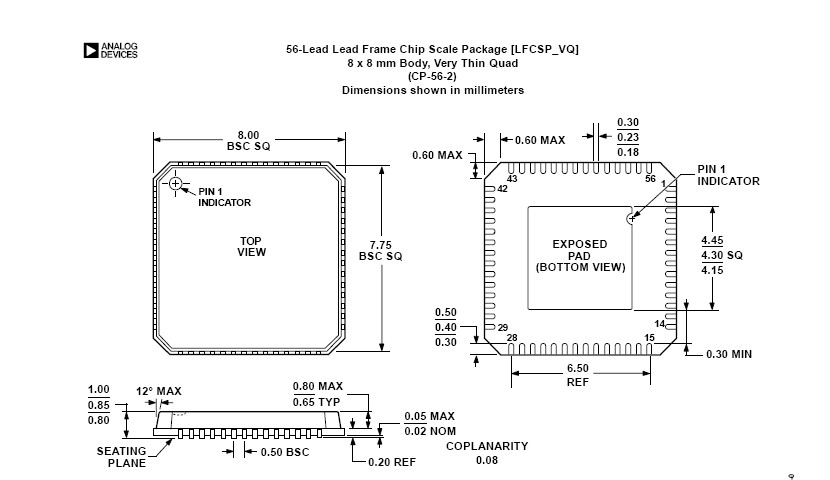

AD9230BCPZ-250 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD9230BCPZ-250
AD9230BCPZ-250


IC ADC 12BIT 250MSPS 56-LFCSP

Data Sheet

0-1: $52.80
1-10: $49.50
10-100: $44.55
100-250: $44.00
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD9200
AD9200

Other


Data Sheet

Negotiable
AD9200ARS
AD9200ARS


IC ADC CMOS 10BIT 20MSPS 28-SSOP

Data Sheet

0-47: $3.30
AD9200ARSRL
AD9200ARSRL


IC ADC 10BIT CMOS 20MSPS 28-SSOP

Data Sheet

0-1500: $2.17
AD9200ARSZ
AD9200ARSZ


IC ADC 10BIT CMOS 20MSPS 28-SSOP

Data Sheet

0-1: $3.50
1-10: $3.15
10-100: $2.59
100-250: $2.38
250-500: $2.17
500-1000: $1.89
1000-2500: $1.86
AD9200ARSZRL
AD9200ARSZRL


IC ADC 10BIT CMOS 20MSPS 28-SSOP

Data Sheet

0-1500: $1.89
AD9200JRS
AD9200JRS

Analog Devices Inc

IC ADC 10BIT CMOS 20MSPS 28-SSOP

Data Sheet

1-47: $3.14
