Product Summary

The STM32F107VCT6 is an ARM-based 32-bit MCU. The STM32F107VCT6 incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 256 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F107VCT6 operates in the -40℃ to +105℃ temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.

Parametrics

STM32F107VCT6 absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD):-0.3V to 4.0V; (2)Input voltage on five volt tolerant pin:VSS-0.3V to +5.5V; (3)Input voltage on any other pin:VSS-0.3V to VDD+0.3V; (4)Variations between different VDD power pins:50mV; (5)Variations between all the different ground pins:50mV.

Features

STM32F107VCT6 features: (1)72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access; (2)Single-cycle multiplication and hardware division; (3)64 to 256 Kbytes of Flash memory; (4)up to 64 Kbytes of general-purpose SRAM; (5)2.0 to 3.6 V application supply and I/Os ; (6)POR, PDR, and programmable voltage detector (PVD); (7)3-to-25 MHz crystal oscillator; (8)Internal 8 MHz factory-trimmed RC; (9)Internal 40 kHz RC with calibration; (10)32 kHz oscillator for RTC with calibration; (11)Sleep, Stop and Standby modes; (12)VBAT supply for RTC and backup registers; (13)Conversion range: 0 to 3.6 V; (14)Sample and hold capability; (15)Temperature sensor; (16)up to 2 MSPS in interleaved mode; (17)2 × 12-bit D/A converters; (18)DMA: 12-channel DMA controller; (19)Up to four 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input; (20)1 × 16-bit motor control PWM timer with dead-time generation and emergency stop; (21)2 × watchdog timers (Independent and Window) SysTick timer: a 24-bit downcounter; (22)2 × 16-bit basic timers to drive the DAC.

Diagrams

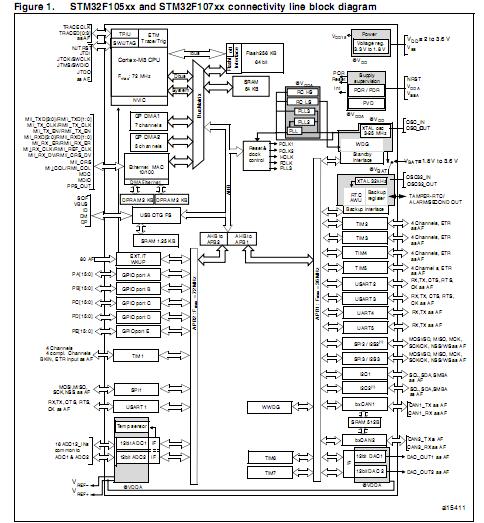

STM32F107VCT6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STM32F107VCT6
STM32F107VCT6

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT Cortex 64/25 CONNECTIVITY LINE M3

Data Sheet

0-1: $6.21
1-10: $5.59
10-100: $4.59
100-250: $4.22
STM32F107VCT6TR
STM32F107VCT6TR

STMicroelectronics

ARM Microcontrollers (MCU) STM32F105 Conn Line M3 256kB 72 MHz MCU

Data Sheet

0-417: $5.96
417-500: $5.21
500-1000: $4.72
