Product Summary

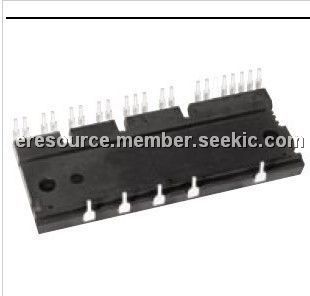

The PS21865-P is an intelligent power module that integrate power devices, drivers, and protection circuitry in an ultra compact dual-in-line transfer-mold package for use in driving small three phase motors. The PS21865-P Use of 5th generation IGBTs, DIP packaging, and application specific HVICs allow the designer to reduce inverter size and overall design time.
Parametrics
PS21865-P absolute maximum ratings: (1)Power Device Junction Temperature* Tj: －20 to 125 °C; (2)Module Case Operation Temperature (See Tf Measurement Point Illustration)Tf: －20 to 100 °C; (3)Storage Temperature Tstg: －40 to 125 °C; (4)Mounting Torque, M4 Mounting Screws: 13 in－lb; (5)Module Weight (Typical): 65 Grams; (6)Self－protection Supply Voltage Limit (Short Circuit Protection Capability)** VCC(prot.): 400 Volts; (7)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, Connection Pins to Heatsink Plate VISO: 2500 Volts.
Features
PS21865-P features: (1)Compact Packages; (2)Single Power Supply; (3)Integrated HVICs; (4)Direct Connection to CPU.
