Product Summary

The VND7NV04TR-E is a fully autoprotected Power MOSFET. It is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology, intended for replacement of standard Power MOSFETS from DC up to 50KHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protects the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.

Parametrics

VND7NV04TR-E absolute Maximum Ratings: (1)Drain-source Voltage (VIN=0V), VDS: Internally Clamped; (2)Input Voltage, VIN: Internally Clamped; (3)Input Current, IIN: +/-20mA; (4)Minimum Input Series Impedance, RIN MIN: 150; (5)Drain Current, Internally Limited; (6)Reverse DC Output Current, IR: -10.5A; (7)Electrostatic Discharge (R=1.5KW, C=100pF), VESD1: 4000V; (8)Electrostatic Discharge on output pin only(R=330W, C=150pF), VESD2:16500V; (9)Total Dissipation at Tc=25℃, Ptot: 7W(SOT-223), 4.6W(SO-8), 60W(DPAK/IPAK); (10)Maximum Switching Energy (L=0.7mH;RL=0W; Vbat=13.5V; Tjstart=150℃; IL=9A), EMAX: 40 mJ; (11)Maximum Switching Energy (L=0.6mH;RL=0W; Vbat=13.5V; Tjstart=150℃; IL=9A), EMAX: 37 mJ; (12)Operating Junction Temperature, Tj:　Internally limited; (13)Case Operating Temperature, Tc: Internally limited; (14)Storage Temperature, Tstg:-55 to 150 ℃.

Features

VND7NV04TR-E features: (1)linear current limitation; (2)thermal shut down; (3)short circuit protection; (4)integrated clamp; (5)low current drawn from input pin; (6)diagnostic feedback through input pin; (7)esd protection; (8)direct access to the gate of the; (9)power mosfet (analog driving); (10)compatible with standard power mosfet.

Diagrams

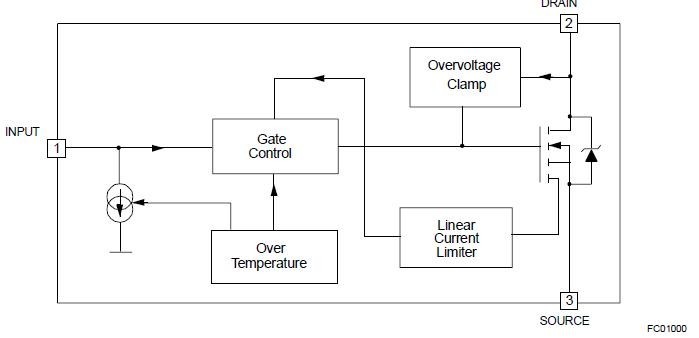

VND7NV04TR-E block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VND7NV04TR-E
VND7NV04TR-E
STMicroelectronics
MOSFET N-Ch 42V 6A OmniFET
Data Sheet
0-1: $1.02
1-10: $0.92
10-100: $0.74
100-250: $0.66
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VND7N04
VND7N04
STMicroelectronics
MOSFET N-Ch 42V 7A OmniFET
Data Sheet
0-860: $0.54
860-1000: $0.45
1000-2000: $0.42
2000-5000: $0.40
VND7N04-1
VND7N04-1
STMicroelectronics
MOSFET N-Ch 42V 7A OmniFET
Data Sheet
0-860: $0.54
860-1000: $0.45
1000-2000: $0.42
2000-5000: $0.40
VND7N0413TR
VND7N0413TR
STMicroelectronics
MOSFET N-Ch 42V 7A OmniFET
Data Sheet
0-1730: $0.47
1730-2000: $0.44
2000-2500: $0.44
2500-5000: $0.42
VND7N04-1-E
VND7N04-1-E
STMicroelectronics
MOSFET N-Ch 42V 7A OmniFET
Data Sheet
0-2230: $0.42
2230-5000: $0.40
5000-10000: $0.39
VND7N04-E
VND7N04-E
STMicroelectronics
MOSFET N-Ch 42V 7A OmniFET
Data Sheet
0-2230: $0.42
2230-5000: $0.40
5000-10000: $0.39
VND7N04TR-E
VND7N04TR-E
STMicroelectronics
MOSFET N-Ch 42V 7A OmniFET
Data Sheet
0-1730: $0.45
1730-2000: $0.42
2000-2500: $0.42
2500-5000: $0.40
