Product Summary

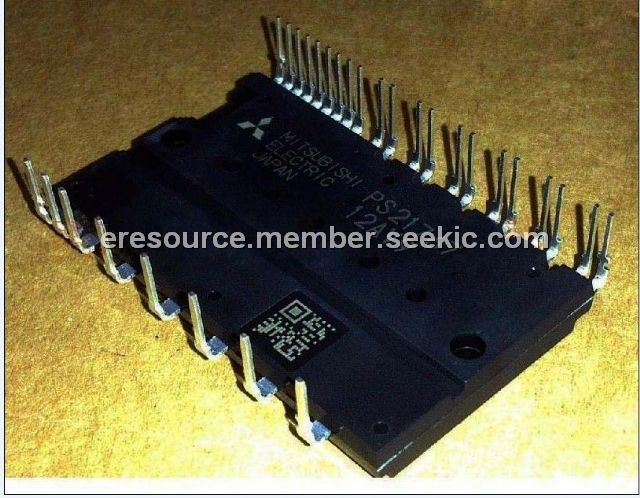

The PS21767 is an intelligent power module that integrates power devices, drivers, and protection circuitry in an ultra compact dual-in-line transfer-mold package for use in driving small three phase motors. The applications of the PS21767 are Refrigerators, Air Conditioners, Small Servo Motors, Small Motor Control.

Parametrics

PS21767 absolute maximum ratings: (1)Power Device Junction Temperature:-20 to 150℃; (2)Storage Temperature:-40 to 125℃; (3)Case Operating Temperature:-20 to 100℃; (4)Mounting Torque, M3 Mounting Screws:8.7 in-lb; (5)Module Weight (Typical):20 Grams; (6)Heatsink Flatness:-50 to 100 μm; (7)Self-protection Supply Voltage Limit:400 Volts; (8)Isolation Voltage:2500 Volts.

Features

PS21767 features: (1)Compact Packages; (2)Single Power Supply; (3)Integrated HVICs; (4)Direct Connection to CPU; (5)Reduced Rth.

Diagrams

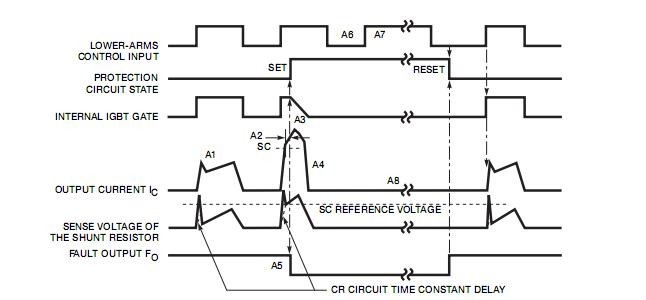

PS21767 block diagram
