Product Summary

The AIC1734-33GXATR is a 3-pin low dropout linear regulator. The superior characteristics of the AIC1734-33GXATR include zero base current loss, very low dropout voltage, and 2% accuracy output voltage. Typical ground current remains approximately 55uA, for loading ranging from zero to maximum. The applications of the AIC1734-33GXATR are CD-ROM Drivers, LAN Cards, Microprocessor, RAM Module, Wireless Communication Systems, Battery Powered Systems.

Parametrics

AIC1734-33GXATR absolute maximum ratings: (1)Input Supply Voltage:-0.3 ~12V; (2)Operating Temperature Range:-40°C~ 85°C; (3)Storage Temperature Range:-65°C~150°C; (4)Maximum Junction Temperature:125°C; (5)Lead Temperature (Soldering) 10 sec.:260°C; (6)Thermal Resistance Junction to Ambient:160°C/W.

Features

AIC1734-33GXATR features: (1)Low Dropout Voltage of 470mV at 300mA Output Current (3.0V Output Version) ; (2)Guaranteed 300mA Output Current; (3)Low Ground Current at 55μA; (4)2% Accuracy Output Voltage of 1.8V/ 2.0V /2.5V /2.7V/ 3.0V/ 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/ 5.2V; (5)Only needs 1μF Output Capacitor for Stability; (6)Current and Thermal Limiting.

Diagrams

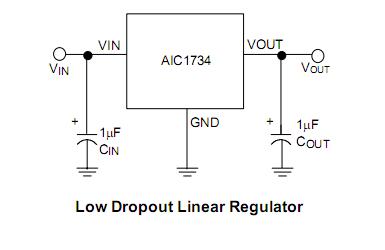

AIC1734-33GXATR block diagram
