Product Summary

The 74HCT595D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HCT595D is an 8-stage serial shift register with a storage register and 3-state outputs. The shift register and storage register have separate clocks. The applications of the 74HCT595D include Serial-to-parallel data conversion, Remote control holding register.

Parametrics

74HCT595D absolute maximum ratings: (1)supply voltage: -0.5 to +7.0 V; (2)input diode current: ±20 mA at VI < -0.5 V to VI > VCC + 0.5 V; (3)output diode current: ±20 mA at VO < -0.5 V to VO > VCC + 0.5 V; (4)output source or sink current: ±25 mA at VO = -0.5 V to VCC + 0.5 V; (5)VCC or GND current: ±70 mA; (6)storage temperature: -65 to +150 ℃; (7)power dissipation: 500 mW at Tamb = -40 to +125 ℃.

Features

74HCT595D features: (1)8-bit serial input; (2)8-bit serial or parallel output; (3)Storage register with 3-state outputs; (4)Shift register with direct clear; (5)100 MHz (typical) shift out frequency; (6)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V.

Diagrams

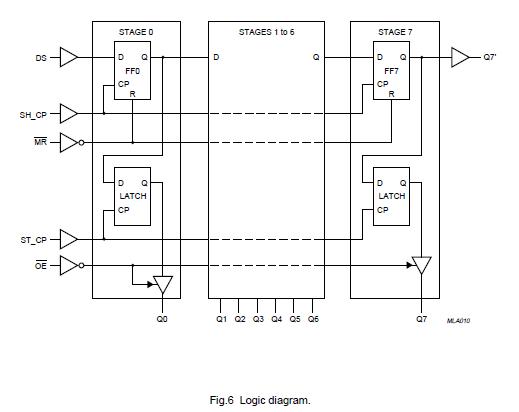

74HCT595D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74HCT595D
74HCT595D

NXP Semiconductors

Counter Shift Registers 8BIT SHIFT REGISTER W/OUTPUT LATCH

Data Sheet

Negotiable
74HCT595D,112
74HCT595D,112

NXP Semiconductors

Counter Shift Registers 8BIT SHIFT REGISTER

Data Sheet

0-1: $0.25
1-25: $0.23
25-100: $0.21
100-250: $0.20
74HCT595D,118
74HCT595D,118

NXP Semiconductors

Counter Shift Registers 8-BIT SHIFT REG W/OUTPUT LATCH

Data Sheet

0-1: $0.25
1-25: $0.23
25-100: $0.21
100-250: $0.20
74HCT595DB,112
74HCT595DB,112

NXP Semiconductors

Counter Shift Registers 8-BIT SHIFT REG

Data Sheet

0-1: $0.71
1-25: $0.65
25-100: $0.57
100-250: $0.50
74HCT595DB,118
74HCT595DB,118

NXP Semiconductors

Counter Shift Registers 8-BIT SHIFT REG

Data Sheet

0-1430: $0.32
1430-2000: $0.32
2000-3000: $0.31
3000-6000: $0.30
74HCT595DB
74HCT595DB

NXP Semiconductors

Counter Shift Registers 8-BIT SHIFT REG W/OUTPUT LATCH

Data Sheet

Negotiable
74HCT595DB-T
74HCT595DB-T

NXP Semiconductors

Counter Shift Registers 8-BIT SHIFT REG W/OUTPUT LATCH

Data Sheet

Negotiable
