Product Summary
The 74HC165D is a high-speed Si-gate CMOS device that complies with JEDEC standard no. 7A. It is pin compatible with Low-power Schottky TTL (LSTTL). The 74HC165D is an 8-bit parallel-load or serial-in shift register with complementary serial outputs (Q7 and Q7) available from the last stage. When the parallel load (PL) input is LOW, parallel data from the D0 to D7 inputs are loaded into the register asynchronously.
Parametrics
74HC165D absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7 V; (2)IIK, input clamping current VI < -0.5 V or VI > VCC + 0.5 V: ±20 mA max; (3)IOK, output clamping current VO < -0.5 V or VO > VCC + 0.5 V: ±20 mA max; (4)IO, output current -0.5 V < VO < VCC + 0.5 V: ±25 mA max; (5)ICC, supply current: - 50 mA max; (6)IGND ground current: -50 mA min; (7)Tstg, storage temperature: -65 +150 ℃.
Features
74HC165D features: (1)Asynchronous 8-bit parallel load; (2)Synchronous serial input; (3)Complies with JEDEC standard no. 7A; (4)ESD protection: HBM JESD22-A114E exceeds 2000 V; MM JESD22-A115-A exceeds 200 V; (5)Specified from -40 ℃ to +85℃ and from -40 ℃ to +125 ℃.

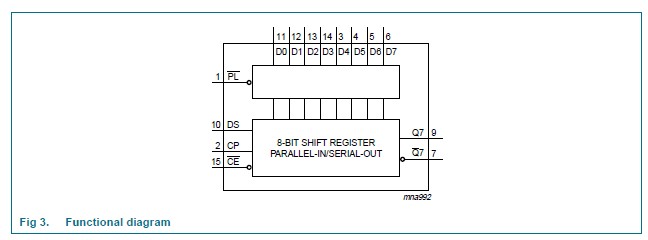

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC165D |
NXP Semiconductors |
Counter Shift Registers 8BIT SHIFT REGISTER PAR-IN/SERIAL-OUT |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC165D,652 |
NXP Semiconductors |
Counter Shift Registers 8BIT SHIFT REGISTER |
Data Sheet |
|
|
||||||||||||
|
74HC165DB,118 |
NXP Semiconductors |
Counter Shift Registers 8-BIT S/PI-SO SHIFT |
Data Sheet |
|
|
||||||||||||
|
74HC165D,653 |
NXP Semiconductors |
Counter Shift Registers 8-BIT S/PI-SO SHIFT REGISTER |
Data Sheet |
|
|
||||||||||||
|
74HC165DB,112 |
NXP Semiconductors |
Counter Shift Registers 8-BIT S/PI-SO SHIFT |
Data Sheet |
|
|
||||||||||||
|
74HC165DB |
NXP Semiconductors |
Counter Shift Registers 8-BIT S/PI-SO SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC165DB-T |
NXP Semiconductors |
Counter Shift Registers 8-BIT S/PI-SO SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
