Product Summary

The ad7846bp is a 16-bit DAC constructed with Analog Devices’LC2 MOS process. It has VREF+ and VREF–reference inputs and an on-chip output amplifier.

Parametrics

ad7846bp absolute maximum ratings: (1)VDD to DGND:–0.4 V to +17 V; (2)VCC to DGND:–0.4 V, VDD + 0.4 V or +7 V(Whichever Is Lower); (3)VSS to DGND:+0.4 V to –17 V; (4)VREF+ to DGND:VDD + 0.4 V, VSS – 0.4 V; (5)VREF– to DGND:VDD + 0.4 V, VSS – 0.4 V; (6)VOUT to DGND2:VDD + 0.4 V, VSS–0.4V or ±10 V(Whichever Is Lower); (7)RIN to DGND:VDD + 0.4 V, VSS – 0.4 V; (8)Digital Input Voltage to DGND:–0.4 V to VCC + 0.4 V; (9)Digital Output Voltage to DGND:–0.4 V to VCC + 0.4 V; (10)Storage Temperature Range:–65℃ to +150℃; (11)Lead Temperature (Soldering):+300℃.

Features

ad7846bp features: (1)16-Bit Monotonicity over Temperature; (2)±2 LSBs Integral Linearity Error; (3)Microprocessor Compatible with Readback Capability; (4)Unipolar or Bipolar Output; (5)Multiplying Capability; (6)Low Power (100 mW Typical).

Diagrams

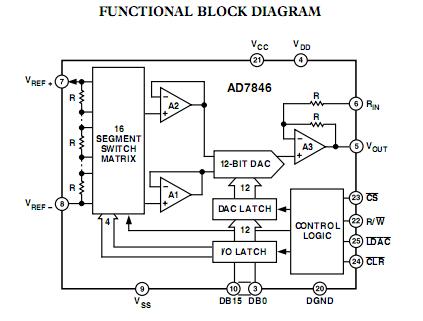

ad7846bp block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

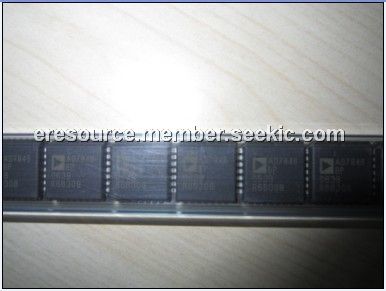

AD7846BP
AD7846BP


IC DAC 16BIT LC2MOS VOUT 28PLCC

Data Sheet

0-5: $41.35
AD7846BPZ
AD7846BPZ


IC DAC 16BIT LC2MOS VOUT 28PLCC

Data Sheet

0-1: $37.67
1-10: $35.39
10-100: $31.96
100-250: $30.44
