Product Summary

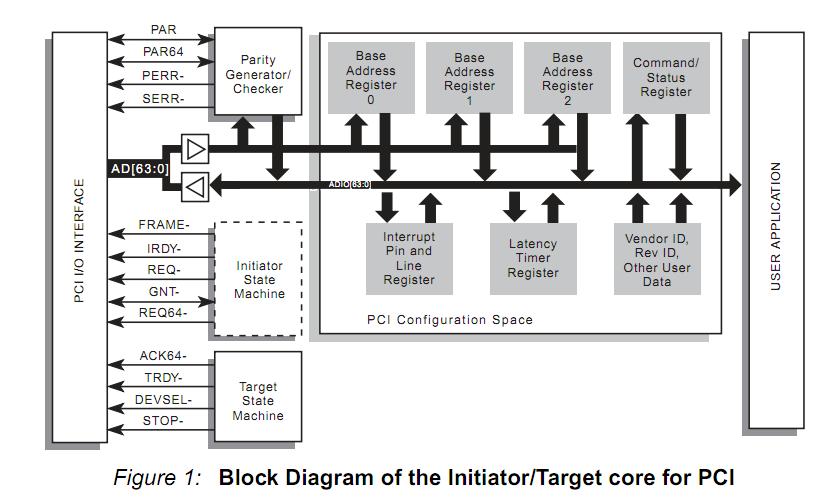

The XC6SLX9-2TQG144C is an Initiator/Target core for PCI. It is a pre-implemented and fully tested module for Xilinx FPGAs. The pinout for each device and the relative placement of the internal logic are predefined. Critical paths are controlled by constraints files to ensure predictable timing, significantly reducing the engineering time required to implement your design. The applications of the XC6SLX9-2TQ144C include Embedded applications in networking, industrial, and telecommunication systems, Add-in for PCI boards such as frame buffers, network adapters, and data acquisition boards, Hot swap CompactPCI boards, CardBus compliant and Any application requiring a PCI interface.
Parametrics
XC6SLX9-2TQ144C absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to 1.32 V; (2)VCCAUX, Auxiliary supply voltage relative to GND: –0.5 to 3.75 V; (3)VCCO, Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT, Key memory battery backup supply: –0.5 to 4.05 V; (5)VFS, External voltage supply for eFUSE programming: –0.5 to 3.75 V.
Features
XC6SLX9-2TQ144C features: (1)Fully compliant 64-bit, 66/33 MHz LogiCORE IP Initiator/Target core for PCI; (2)Customizable, programmable, single-chip solution; (3)Pre-defined implementation for predictable timing; (4)Incorporates Xilinx Smart-IP? technology; (5)3.3V operation at 0–66 MHz; (6)5.0V operation at 0–33 MHz; (7)Fully verified design tested with Xilinx proprietary test bench and hardware; (8)Delivered through Xilinx CORE Generator software; (9)CardBus compliant.
