Product Summary

The SCA100T-D02 is a 5V Inclinometer. The applications of it are 2-axis platform levelling, Inclination based position measurement, Tilt measurement with cross-axis compensation, 360 ° vertical orientation measurement.

Parametrics

SCA100T-D02 absolute maximum ratings: (1)Acceleration (powered or non-powered):20000g; (2)Supply voltage:-0.3V to +5.5V; (3)Voltage at input/output pins:-0.3V to (Vdd+0.3 V); (4)Temperature range:-55 to 125℃.

Features

SCA100T-D02 features: (1)2-axis inclination measurement (X and Y); (2)Available ranges ±0.5 g (±30 °), ±1.0 g (±90 °); (3)Over damped frequency response by Sensing Element(-3 dB @ 8, 28 Hz); (4)0.003 °resolution (10 Hz BW, analog output); (5)Advanced internal and external connection failure detection; (6)Digitally activated electrostatic sensing element self test; (7)Continuous memory parity check; (8)Single +5 V supply; ratiometric voltage output; (9)Serial Peripheral Interface (SPI) compatible; (10)Internal temperature sensor, accessible via SPI; (11)Lead-free reflow solderable lead-free component.

Diagrams

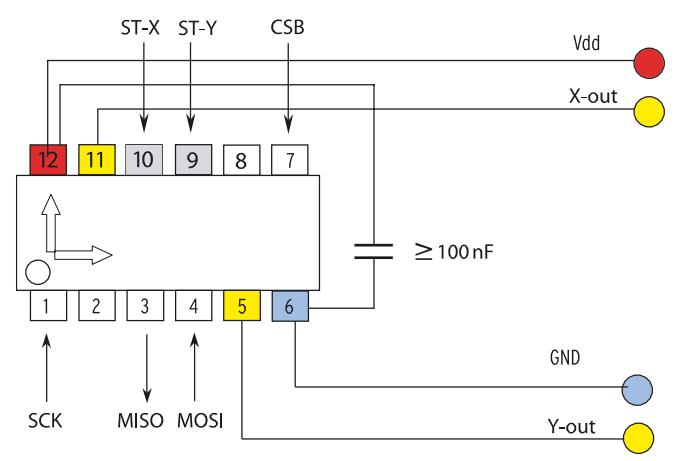

SCA100T-D02 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SCA100T-D02
SCA100T-D02


INCLINOMETER DUAL 1G DIL12 SMD

Data Sheet

0-1: $38.07
1-10: $36.26
10-25: $34.53
25-50: $32.89
SCA100T-D02-1
SCA100T-D02-1

Murata

Vibration & Tilt Sensors 2-Axis Inclinometer Analog

Data Sheet

0-1: $43.31
1-10: $34.64
10-25: $31.49
25-100: $28.63
