Product Summary
The REB-1315LPX is a RoyalTek GPS module. The module is powered by latest SiRF Star III single chip and RoyalTek proprietary navigation technology that provides you with stable and accurate navigation data. The applications of the REB-1315LPX are Automotive navigation, Personal positioning and navigation , Marine navigation, Timing application.
Parametrics
REB-1315LPX absolute maximum ratings: (1)Code:C.A. Code.; (2)Channels:20 parallel; (3)Chip Sensitivity:-159dBm; (4)Chip Cold start:35 sec @ open sky (Typical); (5)Chip Warm start:35 sec @ open sky (Typical); (6)Chip Hot start:1 sec @ open sky (Typical); (7)Reacquisition:0.1sec typical; (8)Position accuracy:10meters at 2D RMS.; (9)Maximum altitude:18000 m; (10)Maximum velocity:514 m/s; (11)Operating Temperature: -40 ~ 85℃; (12)Storage Temperature: -40 ~ 85℃.
Features
REB-1315LPX features: (1)20 parallel channels ; (2)SMT type with stamp holes ; (3)TCXO design ; (4)0.1 second reacquisition time ; (5)Small form factor with embedded SiRF Star III single chip technology; (6)NMEA-0183 compliant protocol/ customize protocol ; (7)Enhanced algorithm for navigation stability ; (8)Excellent sensitivity for urban canyon and foliage environments ; (9)DGPS (WAAS, EGNOS ) support ; (10)Auto recovery while RTC crashes ; (11)Build-in LNA and saw filter.

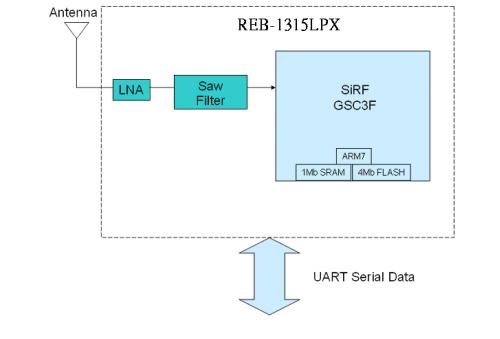

Diagrams
