Product Summary

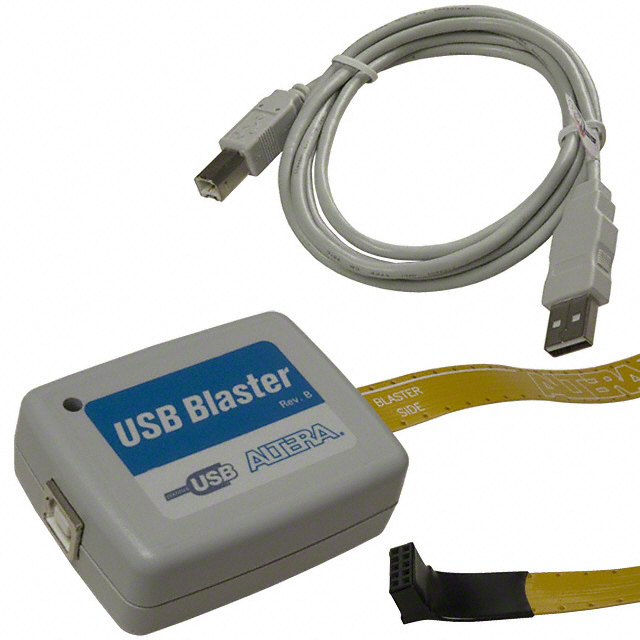

The PL-USB-BLASTER-RCN is an USB-Blaster Download Cable. It has a USB universal plug that connects to the PC USB port, and a 10-pin female plug that connects to the circuit board. Data is downloaded from the USB port on the PC through the USB-Blaster cable to the circuit board via the connections discussed in this section.

Parametrics

PL-USB-BLASTER-RCN absolute maximum ratings: (1)Target supply voltage: -0.3V to 5.5V; (2)USB supply voltage: -0.5V to 6.0V; (3)Input current: -10.0 to 10.0mA; (4)Output current for Rev. A and Rev. B cable: -20.0 to 20.0mA; (5)Output current for Rev. C cable: -50.0 to 50.0mA.

Diagrams

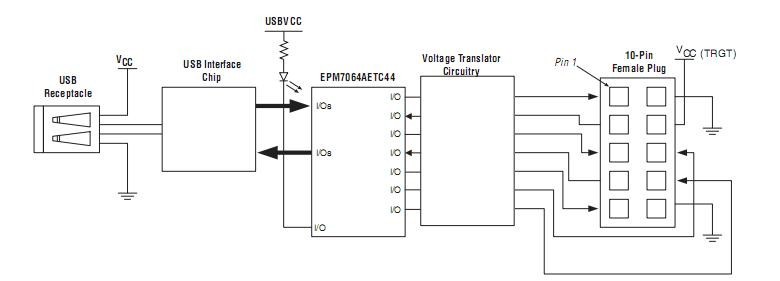

PL-USB-BLASTER-RCN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PL-USB-BLASTER-RCN
PL-USB-BLASTER-RCN


CABLE PROGRAMMING USB

Data Sheet

0-1: $180.00
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PL-USB-BLASTER
PL-USB-BLASTER


CABLE PROGRAMMING USB AS/PS/JTAG

Data Sheet

Negotiable
PL-USB-BLASTER-RB
PL-USB-BLASTER-RB


CABLE PROGRAMMING USB

Data Sheet

Negotiable
PL-USB-BLASTER-RCN
PL-USB-BLASTER-RCN


CABLE PROGRAMMING USB

Data Sheet

0-1: $180.00
