Product Summary
The PMBT3904 is an NPN switching transistor designed for telephony and professional communication equipment.
Parametrics
PMBT3904 absolute maximum ratings:(1)VCBO, collector-base voltage open emitter: 60 V max; (2)VCEO, collector-emitter voltage open base: 40 V max; (3)VEBO, emitter-base voltage open collector: 6 V max; (4)IC, collector current (DC): 100 mA max; (5)ICM, peak collector current: 200 mA max; (6)IBM, peak base current:100 mA max; (7)Ptot, total power dissipation: 250 mW max at Tamb ≤ 25 ℃; note 1; (8)Tstg, storage temperature: -65 to +150 ℃; (9)Tj, junction temperature: - 150 ℃ max; (10)Tamb, operating ambient temperature: -65 to +150 ℃.
Features
PMBT3904 features:(1)Low current (max. 100 mA); (2)Low voltage (max. 40 V).

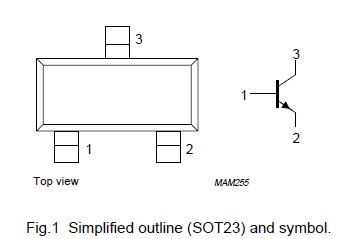

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PMBT3904 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
PMBT3904 /T3 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS SW TAPE-11 |
Data Sheet |
Negotiable |
|
||||||||||||
|
PMBT3904,235 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS SW TAPE-11 |
Data Sheet |
|
|
||||||||||||
|
PMBT3904,215 |
NXP Semiconductors |
Transistors Bipolar (BJT) NPN SW 200MA 40V |
Data Sheet |
|
|
||||||||||||
|
PMBT3904M,315 |
NXP Semiconductors |
Transistors Bipolar (BJT) GENERAL PURPOSE TRANSISTOR |
Data Sheet |
|
|
||||||||||||
|
PMBT3904D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PMBT3904VS,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) GENERAL PURPOSE TRANSISTOR |
Data Sheet |
|
|
||||||||||||
|
PMBT3904YS,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) GENERAL PURPOSE TRANSISTOR |
Data Sheet |
|
|
||||||||||||
